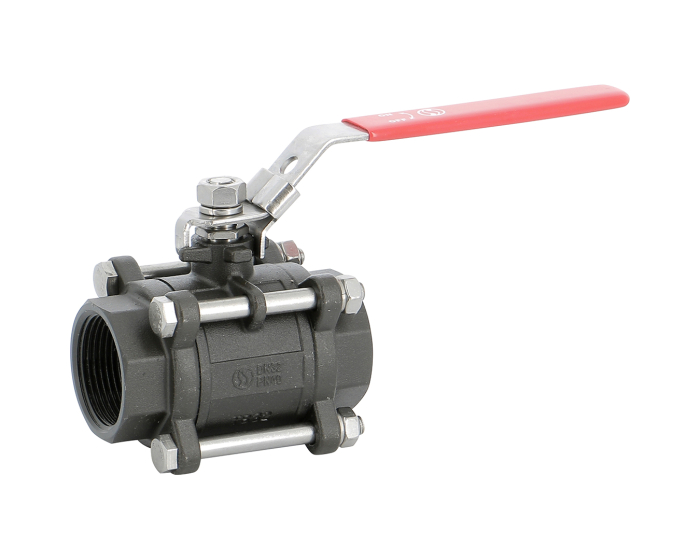

The 796 series ball valve , 3-piece body in steel with BSP-NPT female/female connection and PTFE packing gland for the chemical, pharmaceutical and petrochemical industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 304 |
| Lockable | Yes |
| Torque (Nm) | 2 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 59.0 |
| Fluid | Oxygen / Argon / Nitrogen |
| Kv (m³/h) | 5.2 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| Packing gland | Yes |
| PS (bar) | 63 |
| Connections | BSP FF |
| Seats | PTFE-Glass |
| Ball material | Stainless steel AISI 304 |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Ball valve design | 3-piece body |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Black |
| Handle material | Stainless steel AISI 304 |
| Handle type | Red lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF 1/4'' | 796002 | S1007802 |
€9.86
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF 3/8'' | 796003 | S1007803 |
€9.86
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF 1/2'' | 796004 | S1007804 |
€10.97
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF 3/4'' | 796005 | S1007805 |
€13.67
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF 1'' | 796006 | S1007806 |
€19.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF 1''1/4 | 796007 | S1007807 |
€29.21
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF 1''1/2 | 796008 | S1007808 |
€46.76
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF 2'' | 796009 | S1007809 |
€68.89
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF 2''1/2 | 796010 | S1007810 |
€143.81
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF 3'' | 796011 | S1007811 |
€211.83
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF 4'' | 796012 | S1007812 |
€419.50
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF 1/4'' | 796102 | S1007813 |
€9.86
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF 3/8'' | 796103 | S1007814 |
€9.86
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF 1/2'' | 796104 | S1007815 |
€10.97
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF 3/4'' | 796105 | S1007816 |
€13.67
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF 1'' | 796106 | S1007817 |
€19.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF 1''1/4 | 796107 | S1007818 |
€29.21
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF 1''1/2 | 796108 | S1007819 |
€46.76
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF 2'' | 796109 | S1007820 |
€68.89
(excl. btw)
|
add to cart |
